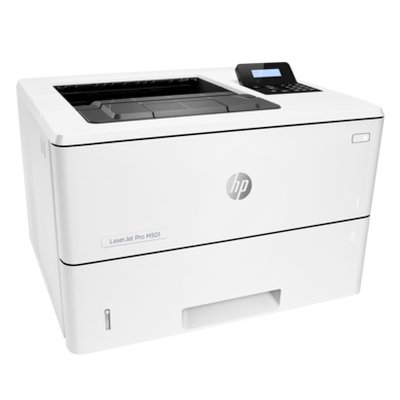

Принтер HP LaserJet Pro M501dn (J8H61A)

Принтер лазерный, печать черно-белая, максимальный формат А4, скорость ч/б печати 43 изобр./мин, разъемы и средства связи: Ethernet (RJ-45), USB



Технические характеристики

Максимальный формат	А4
Скорость печати	43 стр/мин (односторонняя); 34стр/мин (двусторонняя)
Разрешение печати	600х600 dpi



 Расходные материалы

RK2-6259-000CN	Flat flexible cable
RK2-8657-000CN	Cable-Flexible Flat
RL2-0888-000CN	Formatter PCA case
RM2-8514-000CN	Paper re-pick-up clutch assembly
J8H60-67904	Control panel assembly
RC4-4137-000CN	Cover, Right
RC4-4433-000CN	I/O cover assembly - For the M506 printer series
RM2-5711-000CN	Rear door assembly
RM2-5713-000CN	Left cover assembly
RM2-5735-000CN	Top cover assembly - For the Laserjet Pro M501 printer model only
RM2-5677-000CN	Cartridge door assembly - For the Laserjet Pro M501 printer models only
RM2-5715-000CN	Paper feed drive assembly - For the M527 printer series only
RK2-8068-010CN	Fan;Part RK2-8068-010CN is no longer supplied.
RM2-5666-000CN	Intermediate paper feeder assembly
RM2-5679-000CN	Fusing assembly - For 110-127 VAC operation
RM2-5692-000CN	Fusing assembly - For 220-240 VAC operation
RM2-5689-000CN	Film bias assembly
RC4-3134-000CN	Holder Transfer Roller Left HP Pro M402DN M403
RM2-5528-000CN	Laser/scanner assembly
RM2-9531-000CN	Assy-Main Motor
J8H60-67901	Formatter (main logic) PC board
J8H60-67902	Formatter (main logic) PC board - For the LaserJet Pro M501n
J8H61-67901	Formatter (main logic) PC board
RM2-7948-000CN	Fusing power supply (FPS) PC board assembly
RM2-7941-000CN	Low-voltage power supply (LVPS) - For 110-127 VAC
RL1-2593-000CN	Multipurpose/tray 1 Paper pick-up roller assembly
RM2-7945-000CN	High-voltage power supply (HVPS) assembly
F2A68-67910	Transfer roller service assembly
F2A68-67914	Multipurpose/tray 1 pick-up roller and separation pad
RM2-5671-000CN	Registration roller assembly
RK2-6256-000CN	Cable, Flexible Flat
RM2-5679-000BU	Fixing Assy 110-127v
RM2-8711-000CN	DC CONTROLLER PCB-Duplex
RM2-8712-010CN	DC CONTROLLER PCB-Simplex
RM2-8712-030CN	Dc Controller Pcb Ass'Y
RM1-5421-000CN	Solenoid assembly - For the M506 printer models only
RM2-5701-000CN	Lever switch assembly
RK2-0535-000CN	Microswitch (SW2)
RM2-5701-010CN	Lever Switch Assy
RC4-4141-000CN	Tray, Paper Delivery
RC4-4439-000CN	Paper delivery output bin tray
RM2-5690-000CN	Paper cassette tray
F2A72-67901	Optional feeder tray 550 Media capacity HP Enterprise M506
RM2-5677-000CN	Cartridge door assembly
RM2-5712-000CN	Rear door assembly





Совместимые картриджи

CF287A	черный
CF287AS	черный
CF287X	черный
CF287XD	черный
