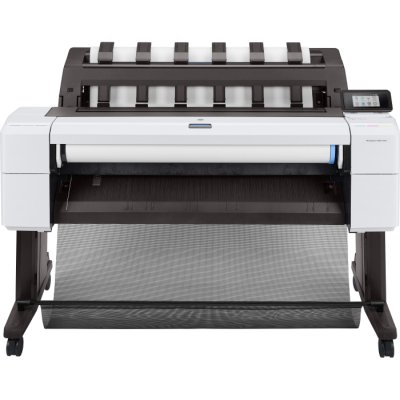

Плоттер HP DesignJet T1600 (3EK10A)
|
|
|||||||||||||
Струйный, печать цветная, максимальный формат A0
Технические характеристики
| Максимальный формат | A0 |
| Максимальное разрешение для ч/б печати | 2400х1200 dpi |
| Максимальное разрешение для цветной печати | 2400х1200 dpi |
Расходные материалы
| CR357-67003 | PRS actuator assembly |
| 3EK10-67009 | TX600 Stacker Assy SV kit |
| 3XB77-67008 | TX600 Designjet T1600 T2600 T3600 MFP Hard Disk Drive HDD 500G HDD SV kit |
| Y3T75-67017 | TX600 Cables Kit |
| L2Y23-67006 | Stacker Arms assembly - For the DesignJet T930 series |
| L2Y21-67006 | T9XX/T15XX/T25XX Rear Beam SV kit |
| CR357-60267 | Carriage belt - Long belt that moves the carriage assembly |
| CR357-67021 | Carriage belt - Long belt that moves the carriage assembly |
| Y3T75-67006 | TX600 wifi bezel housing |
| Q6675-60043 | Carriage rail oiler For HP DesignjetT1200/T770/T790/T620 |
| CR357-67054 | Center cover assembly |
| CR359-67003 | T2500 Cover Scanner CP_side |
| L2Y21-67015 | Protective Cover Left SV |
| Y3T75-67014 | TX600 Top Cover Scanner |
| Y3T75-67016 | TX600 Rear Cover SV kit |
| 2YB64-67011 | MARS&NEPT cutter guide wpulley&bumper |
| 6KD23-67043 | Cutter adjustment tool |
| Y3T75-67018 | TX600 Ink Door SVS side |
| CR357-67089 | T920/Tx500 STACKER TRAY FILLER |
| CR357-67090 | T920/Tx500 Grease Kit 3cc Syringe |
| L2Y23-67002 | Hp Dj T930/T1530/T2530 Full Bleed |
| CR357-67070 | Carriage latch assembly |
| CR357-67005 | Auto pinch lifter assembly |
| CR357-67073 | Preventive maintenance kit |
| CR357-67010 | Starwheel motor assembly |
| CR357-67023 | Scan Axis Motor for DesignJet T1600 T2600 t920 t1500 |
| CR357-67078 | Stack pad - Where the stack arm rest on |
| 3EK10-67002 | NEPT triton PCA wcover |
| 3EK10-67005 | NEPT SF Tasmania PCA |
| CR357-67006 | Output sensor PCA. Output sensor PCA - For the HP DesignJet T920 / T1500 / T1600 |
| Y3T75-60072 | NEPTUNE Appleby PCA denoted image# 1 Engine PCA |
| CR357-67074 | Stacker pinch assembly |
| CR357-67014 | Output platen assembly |
| CQ533-60003 | Power cord - For use with Designjet printers (Asia) |
| 6KD23-67032 | Xl3600/Tx600 Second Ov Sw Rail |
| CR357-67020 | Line sensor - Includes FFC cable Line Sensor W/Cable |
| CR359-67018 | Paper media lid sensor |
| 2YB64-67047 | Xl 3600/Tx600 Pmk3 Designjet T1600 T2600 XL3600 comes |
| 3EK10-67013 | Blue Hub With Spring Sv Kit |
| 6KD23-67024 | XL3600/TX600 ISS CP side |
| Y3T75-67007 | Tx600 Pmk1 |
| CR357-67025 | Service station with drop detector |
| CR357-67093 | 36-inch spindle assembly - For the T920, T1500, T2500 sereis |
| CR354-67004 | 36-inch metal sheet starwheel assembly |
| CH538-67074 | Center support assembly |
| CR357-67038 | Top tip support assembly support assembly |
| CR357-67080 | T920/Tx500 Microswitch |
| CN727-69006 | Calibration sheet - Includes cleaning cloth and aligns unit heads / scanner |
| Q6683-67028 | Tool Kit - Includes the flex cleaner, screwdriver torx T-15, dispenser oil |
| CR357-67066 | Basket output tray assembly |
Совместимые картриджи
| P2V70A | желтый |
| P2V68A | голубой |
| P2V69A | пурпурный |
| P2V72A | серый |
| P2V64A | желтый |
